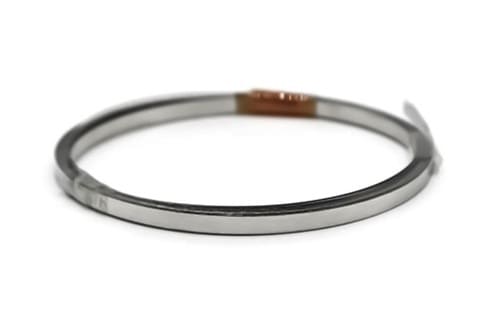

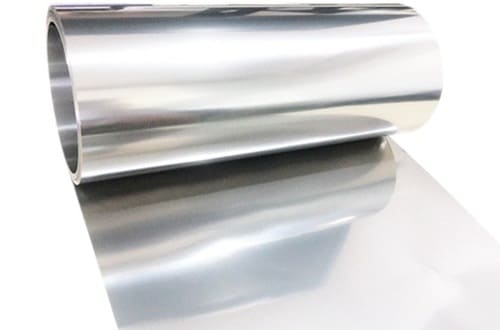

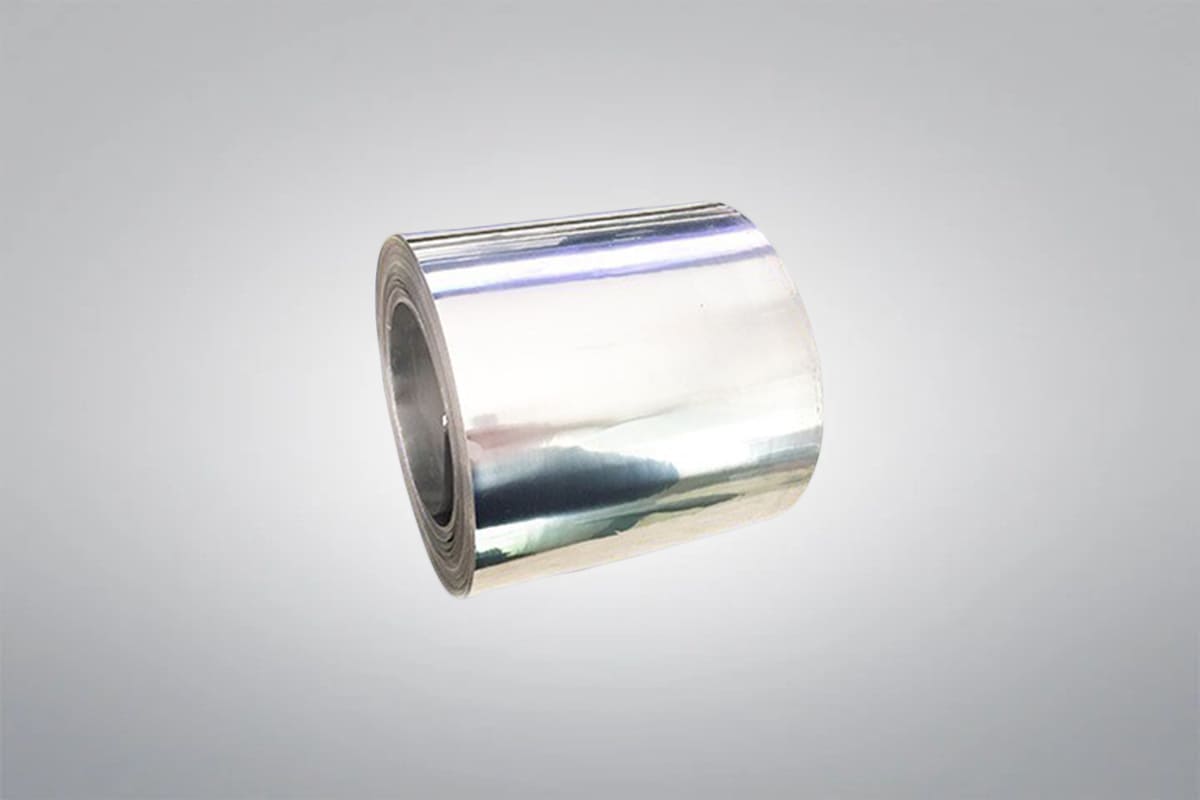

Platin-Iridium-Legierung Folie/Streifen/Band

Platin-Iridium-Legierung Folie/Streifen/Band

Platin-Iridium-Legierung Folie/Streifen/Band

Material: PtIr5, PtIr10, PtIr15, PtIr20, PtIr25

  • Kundenspezifische Größen und Standardgrößen auf Lager
  • Schnelle Vorlaufzeit
  • Konkurrenzfähiger Preis

Platinum Iridium Alloy Foil/Strip/Ribbon is made from a high-quality blend of platinum and iridium in a customized raitio, combining the superior properties of platinum and riridium. As a leading supplier and manufacturer of premium platinum products, Heeger Metal leverages advanced technology to deliver high-quality platinum iridium alloy foils, strips, and ribbons for various applications.

Oder senden Sie uns eine E-Mail an max@heegermaterials.com.

Platinum Iridium Alloy Foil/Strip/Ribbon Data Sheet

Referenz-Code:HM2069
Material:PtIr5, PtIr10, PtIr15, PtIr20, PtIr25
Reinheit:99.95% – 99.99%
Die Dichte:21.56 g/cm3
Temperament:Geglüht oder ungeglüht

Platinum Iridium Alloy Foil/Strip/Ribbon Description

Platinum Iridium Alloy Foil/Strip/Ribbon is made from a blend of platinum and iridium in a certain composition ratio, combining platinum’s stability and resistance to chemical attack with iridium’s hardness and strength. It is available in various thicknesses and widths, offering versatility for different industrial uses. Heeger Metal can supply high-quality platinum iridium alloy foils, strips, and ribbons with various specifications and customized solutions to suit industrial and research applications, ensuring optimal performance and cost-effectiveness.

Platinum Iridium Alloy Foil/Strip/Ribbon Specifications

ProduktPtIr5/PtIr10/PtIr15/PtIr20/PtIr25
Density (PtIr10)21.6 g/cm3Melting point1780 ℃
Hardness (HB, annealed)1300 MPaResistance coefficient0.245 Ω·cm2/m
Thermal conductivity30 W/(m·K)Tensile strength (annealed)387 MPa
Resistance temperature coefficient1.33×10-3℃-1Breite0.4-10 mm
Wall thickness0.025-0.5 mmPrecision±0.01 mm

Platinum Iridium Alloy Foil/Strip/Ribbon Advantages

  • Hoher Schmelzpunkt
  • Korrosionsbeständigkeit
  • Good Cold Working Performance
  • High Precision, Customization Available
  • Smooth and Rounded, Burr-Free
  • Biocompatible

Platinum Iridium Alloy Foil/Strip/Ribbon Applications

  • Precision Instruments: The alloy’s stability and resistance to corrosion make it ideal for components in precision instruments like thermocouples and sensors.
  • Electrical Contacts: It is widely used in electrical contacts and connectors, particularly in environments requiring high reliability and low electrical resistance.
  • High-Temperature Applications: Platinum iridium alloy is often used in applications that involve extreme temperatures, such as in aerospace, furnace components, and catalytic converters.
  • Medizinische Geräte: Due to its biocompatibility, it is used in medical devices such as pacemakers, stents, and other implantable devices.
  • Chemische Industrie: The alloy is used in catalytic processes and chemical reactors, where its corrosion resistance and high melting point are crucial.

Platinum Iridium Alloy Foil/Strip/Ribbon Packaging

Platinum Iridium Alloy Foil/Strip/Ribbon is carefully placed in wooden cases or cartons with additional soft materials to support and prevent shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.

Platinum Iridium Alloy Properties

ElementWert
Härte - Brinell130-190
Bruchdehnung (%)<25
Zugfestigkeit( MPa )380-620
ElementWert
Elektrischer Widerstand (µOhmcm)25
Temperaturkoeffizient( K-¹ )0.0013
ElementWert
Dichte( gcm-³ )21.56
ElementWert
Schmelzpunkt( C )1800
Wärmeleitfähigkeit( W m-¹ K-¹ )31@23
Wärmeleitfähigkeit( W m-¹ K-¹ )31@23C
Wärmeausdehnungskoeffizient( x10-⁶ K-¹ )8.7@20-100°C

Herunterladen

Angebot einholen

Wir werden das prüfen und uns innerhalb von 24 Stunden bei Ihnen melden.

To customize your platinum iridium alloy foil, platinum iridium alloy strip, or platinum iridium alloy ribbon, please provide the following details: Once we have these details, we can provide you with a quote within 24 hours.

Wir haben eine Vielzahl von Platinprodukten auf Lager, für die im Allgemeinen keine Mindestbestellmenge erforderlich ist. Für Sonderanfertigungen setzen wir jedoch in der Regel einen Mindestbestellwert von $200 fest. Die Vorlaufzeit für Lagerartikel beträgt in der Regel 1-2 Wochen, während Sonderanfertigungen in der Regel 3-4 Wochen dauern, je nach den Besonderheiten des Auftrags.

Bei der Einhaltung der DFARS (Defense Federal Acquisition Regulation Supplement) geht es in erster Linie um die Beschaffung von Materialien für verteidigungsrelevante Anwendungen in den Vereinigten Staaten. Gemäß DFARS müssen bestimmte Materialien, die im Verteidigungsbereich verwendet werden, aus den Vereinigten Staaten oder qualifizierten Ländern bezogen werden. Wenn Sie über bestimmte Platinwerkstoffe verfügen, die unter die DFARS fallen, teilen Sie uns dies bitte im Voraus mit, damit wir es bestätigen können.

Bei Heeger Metal nehmen wir diese Verantwortung ernst. Wir halten uns an alle geltenden Gesetze und Vorschriften, einschließlich Abschnitt 1502 des Dodd-Frank Act. Unser Unternehmen arbeitet nach einem strengen Ethikkodex und verpflichtet sich, nur mit Lieferanten zusammenzuarbeiten, die unser Engagement für eine verantwortungsvolle Beschaffung teilen. Wir unterstützen die Initiativen und Programme zur Förderung “konfliktfreier” Lieferketten und arbeiten sorgfältig daran, dass unsere Produkte diese Standards erfüllen.

Platinum iridium alloy foil/strip/ribbon is widely used in aerospace, medial devies, electrical contacts, and high-temperature applications due to its corrosion resistance and durability.

It offers high melting point, excellent conductivity, oxidation resistane, and mehanial strength, making it ideal for demanding environments.
