Placa/hoja/disco de molibdeno
Placa/hoja/disco de molibdeno
Norma: ASTM B387
Material: Mo puro361, MoTZM (Mo364), Mo-Lanthanoxid (ML)
Molybdenum Plate, Sheet, and Disc are made of high-purity molybdenum material, exhibiting high melting point, excellent thermal conductivity, and low thermal expansion. As a leading supplier and manufacturer of premium molybdenum products, Heeger Materials leverages advanced machining centers to deliver high-precision molybdenum and molybdenum alloy Plate/Sheet/Disc for wide ranges of applications.
O envíenos un correo electrónico a max@heegermaterials.com.
Molybdenum Plate/Sheet/Disc Data Sheet
| Referencia: | HMMO1080 |
|---|---|
| Dimensiones: | Plate: >0.1875″ Thickness × <800mm Width × <3200mm Length Sheet: 0.004″-0.090″ Thickness × Width × Length Disco: (5-150 mm) Diameter x (0.2-12.0 mm) Thickness |
| Estándar: | ASTM B386 |
| Material: | Mo puro361, MoTZM (Mo364), Mo-Lanthanoxid (ML) |
| Pureza: | 99.95%-99.99% |
| Temperamento: | Recocido o sin recocido |

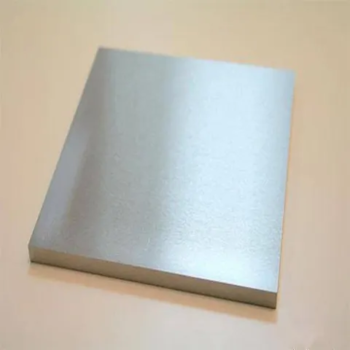

Molybdenum Plate
| Thickness (inch) | Max. Width (inch) | Max. Length (inch) | Thickness Tolerance (inch) |
|---|---|---|---|
| 0.090 – 0.200 | 30 | 114 | +/- 0.008 |
| 0.200 – 0.250 | 24 | 84 | +/- 2% |
| 0.250 – 0.500 | 24 | 42 | +/- 2% |
| >0.500 | 24 | - | +/- 2% |
Molibdeno Plate is made of high-purity molybdenum material, possessing excellent thermal conductivity, low thermal expansion, and corrosion resistance. They are commonly applied in high temperatures and pressure conditions. Its thickness ranges from 0.09″ to 3″. HM can supply high-precision molybdenum and molybdenum alloy plates with tight tolerances and various specifications.

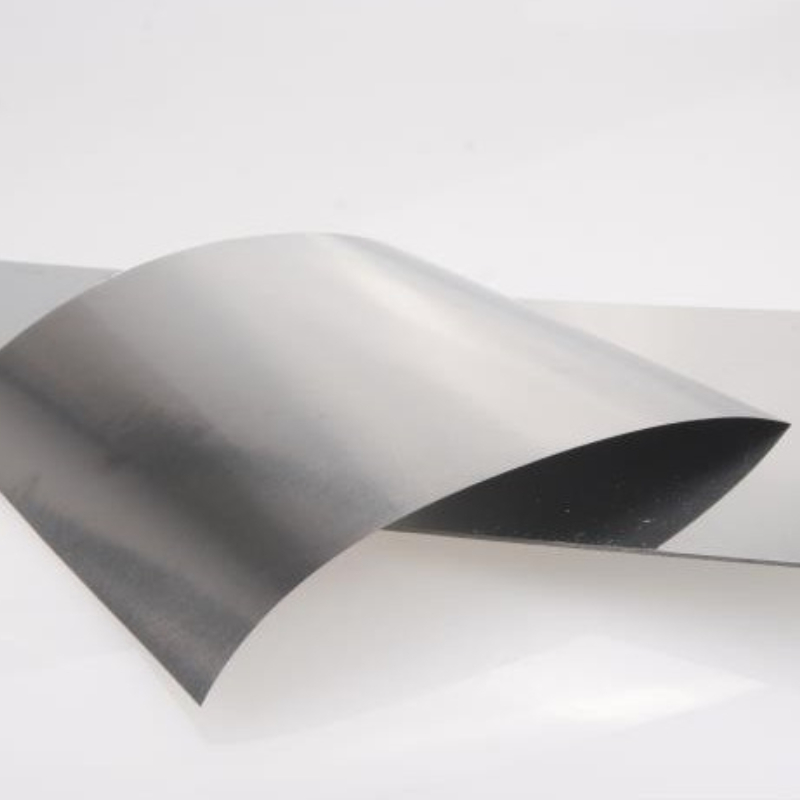

Molybdenum Sheet
| Thickness (inch) | Max. Width (inch) | Max. Length (inch) | Thickness Tolerance (inch) |
|---|---|---|---|
| <0.004 | 12 | 72 | +/- 0.0004 |
| 0.004 – 0.006 | 16 | 96 | +/- 0.0005 |
| 0.006 – 0.010 | 24 | 132 | +/- 10% |
| 0.010 – 0.090 | 30 | 132 | +/- 0.005 |
Molybdenum Sheet has similar properties to molybdenum plates, but the thicknesses range from 0.004″ to 0.09″. It is better suited for applications requiring lightweight and high strength.

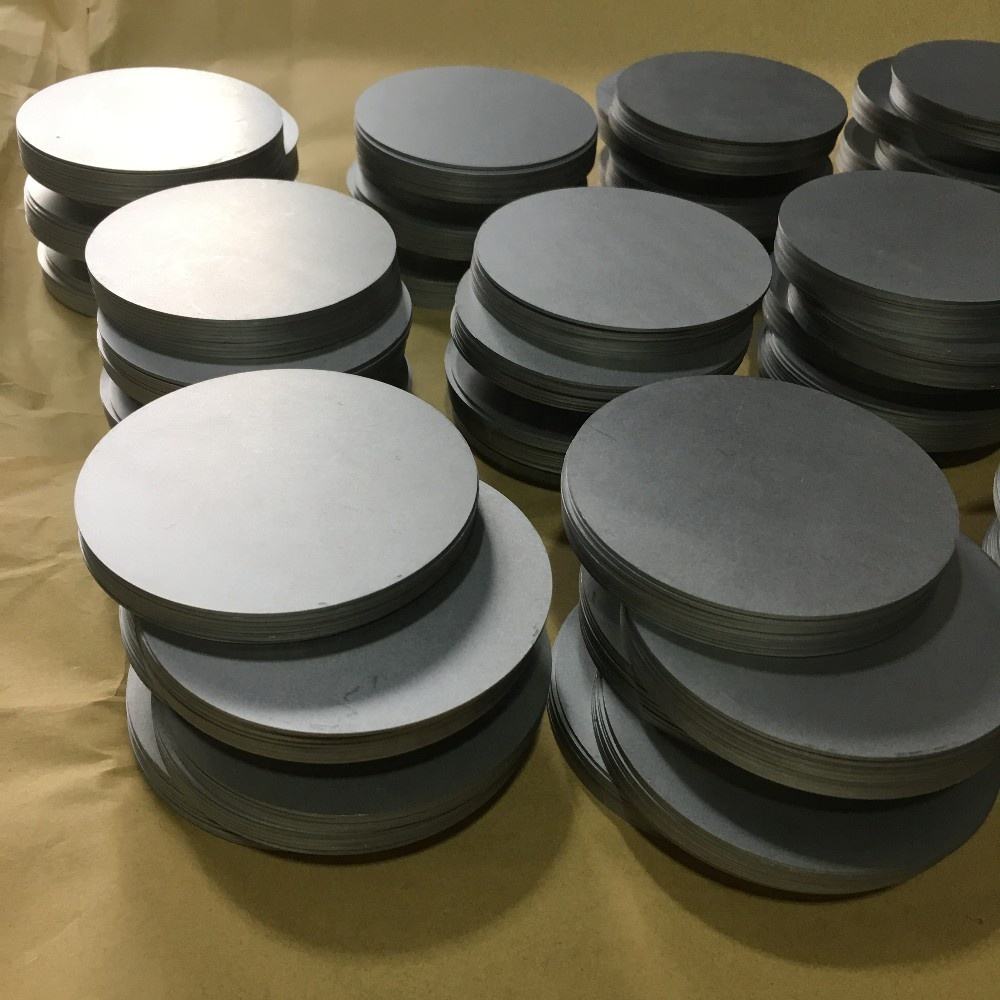

Molybdenum Disc
| Dimensión: | Diameter: 5-150 mm Thickness: 0.2-12.0 mm Tolerance: ±0.025 mm |
|---|---|
| Flatness: | <0.005 mm |
| Parallelism: | <0.01 mm |
| Roughness: | Ra<0.063 mm |
| Plating: | Ru, Rh, Ni, Ag, Au, etc. |
Molybdenum Discs are available in pure form or coated with materials such as Ruthenium (Ru), Rhodium (Rh), Nickel (Ni), Silver (Ag), Gold (Au), etc. Molybdenum discs serve as crucial contact materials in silicon-controlled rectifier diodes, transistors, and thyristors. Additionally, molybdenum discs are essential heat sink base materials in integrated circuits (ICs), large-scale integrated circuits (LSIs), and hybrid circuits.
Molybdenum Plate/Sheet/Disc Production Process
- Materia prima: Seleccione alta pureza molibdeno en polvo.
- Pulvimetalurgia: Mezclar con aglutinante y compactar en un tocho verde.
- Sinterización: Sinterización a alta temperatura para eliminar el aglutinante y aumentar la densidad.
- Tratamiento térmico: Recocido para aliviar la tensión y mejorar las propiedades.
- Tratamiento de superficies: Limpiar y pulir la superficie.
- Corte y personalización: Cortar o personalizar según las necesidades.
Molybdenum Plate/Sheet/Disc Processing Method
- Sinterización
- Forja
- Forja rotativa
- Rodando
- Pulido
Molybdenum Plate/Sheet/Disc Surface Finish
Depending on the intended applications, molybdenum plate, sheet, and disc have three main surface finishes as follows:
- Negro: La superficie es “tal como se estampó” o “tal como se estiró”, conservando una capa de lubricantes de procesamiento y óxidos.
- Limpio: La superficie se limpia químicamente para eliminar todos los lubricantes y óxidos.
- Suelo: La superficie se rectifica sin centros para eliminar todo el revestimiento y lograr un control preciso de las dimensiones.
Molybdenum Plate/Sheet/Disc Applications
- Aeroespacial: Molybdenum plates, sheets, and discs can be used to manufacture engines, combustion chambers, and other components.
- Química Field: Molybdenum plates, sheets, and discs can be used to manufacture parts for high-temperature furnaces, reactors, heat exchangers, and other equipment.
- Electrónica: Molybdenum plates, sheets, and discs can be used to manufacture electronic devices and heat-dissipation materials. Molybdenum discs are the ideal material for Heat Sink Bases in ICs, LSIs, and Hybrid circuits.
- Ámbito médico: Molybdenum plates and sheets can be used to make radiation protection equipment, containers for transporting radioactive isotopes, etc.
Molybdenum Plate/Sheet/Disc Packaging
The Molybdenum Plate/Sheet/Disc is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
