Zirkonium Rohr/Rohr
Zirkonium Rohr/Rohr
Material: Zr702, Zr704, Zr705
Standard: ASTM B523/B523M-18, ASME SB-523, ASTM B658/B658M-11ε1, ASME SB-658/SB-658M
Zirconium Tube/Pipe is made from zirconium metal, with excellent corrosion resistance, high-temperature tolerance, and nuclear properties. It is commonly used in nuclear fuel assemblies and in-heap structures in nuclear reactors. As a leading supplier and manufacturer of premium zirconium products, Heeger Materials leverages advanced technology to deliver high-purity zirconium tubes and pipes for wide ranges of applications.
Oder senden Sie uns eine E-Mail an sales@heegermaterials.com.
Zirconium Tube/Pipe Data Sheet
| Referenz: | HMZZ1147 |
| Material: | Zr702, Zr704, Zr705 |
| Reinheit: | 99.5%-99.99% |
| Abmessungen: | Seamless Tube: 8-152 mm OD × 0.5-15 mm WT × ≤9000 mm L, or customized Welded Tube: >10 mm Diameter |
| Standard: | ASTM B523/B523M-18, ASME SB-523, ASTM B658/B658M-11ε1, ASME SB-658/SB-658M |
| Temperament: | Geglüht und ungeglüht |
Zirkonium Rohr/Rohr
Zirkonium (Zr) is an exceptionally corrosion-resistant metal, offering superior acid corrosion resistance compared to titanium and various steels, and is close to tantalum in performance. It demonstrates excellent resistance to hydrochloric acid at all concentrations and temperatures, even above its boiling point, and is highly resistant to crevice corrosion, pitting, and stress corrosion. Zirkonium Rohr/Rohr is an important nuclear material, highly suited for nuclear fuel assemblies and in-heap structures in nuclear reactors due to its minimal neutron absorption cross-section and an impressive melting point of 1855 ℃. HM can supply high-quality zirconium tubes and pipes with various specifications for multiple applications.
Zirconium Tube/Pipe Material Composition
| Material | Chemische Zusammensetzung | ||||||
|---|---|---|---|---|---|---|---|
| Zr+Hf | Sn | Fe | Cr | Ni | Hf | Nb | |
| Zr 702 | ~99.5% | / | <0,05% | <0,05% | / | 1~2.5% | / |
| Zr 704 | ~97.5% | 1~2% | 0.1~0.2% | 0.1~0.2% | / | <4.5% | / |
| Zr 705 | ~95.5% | 1~2% | <0,05% | <0,01% | / | <4.5% | 2~3% |
| Zircaloy-2 | ~98% | 1.2~1.7% | 0.07~0.2% | 0.05~0.15% | 0.03~0.08% | <200ppm (nuclear) | / |
| Zircaloy-4 | ~98% | 1.2~1.7% | 0.07~0.2% | 0.05~0.15% | <0,007% | <200ppm (nuclear) | / |
Zirconium Tube/Pipe Specifications
| Seamless tube | Diameter: 8-152 mm Wall thickness: 0.5-15 mm Length: ≤9000 mm |
| Welded tube | Diameter: >10 mm |
| Standard | ASTM B523/B523M-18 ASME SB-523 ASTM B658/B658M-11ε1 ASME SB-658/SB-658M |
| Hinweis | The dimensions can be customized according to specific requirements. |
Zirconium Tube/Pipe Mechanical Properties
| Material | Tensile Strength, Ultimate MPa (ksi) | Tensile Strength, Yield MPa (ksi) | Modulus of Elasticity GPa (ksi) | Shear Modulus GPa (ksi) | Dehnung beim Bruch |
| Zr 702 | 450 (65.3) | 325 (47.1) | 99.3 (14400) | 36.2 (5250) | 32% |
| Zr 704 | 530 (76.9) | 360 (52.2) | 99.3 (14400) | 36.2 (5250) | 22% |
| Zr 705 | 600 (87.0) | 500 (72.5) | 97.9 (14200) | 34.5 (5000) | 20.0% |
Zirconium Tube/Pipe Features
- Ausgezeichnete Korrosionsbeständigkeit
- Hoher Schmelzpunkt
- Absorptionsquerschnitt für niedrige Neutronen
- Ausgezeichnete Strahlungsbeständigkeit
Zirconium Tube/Pipe Production Process
- Barrengießen
- Schmieden
- Strangpressen
- Rollender
- Glühen
- Oberflächenbehandlung
Zirconium Tube/Pipe Applications
- Nuklearindustrie: Zirconium tubes are commonly used as casing material for nuclear reactor fuel.
- Chemische Industrie: Zirconium tubes can also be used to manufacture reactors, heat transfer equipment, chemical piping, etc.
- Luft- und Raumfahrt: Zirconium tubes are also used in spacecraft components.
- Petrochemische Industrie: Zirconium tubes can be used in extreme environments, such as the internal piping of oil drilling equipment, pumps, etc.
- Meerestechnik: Zirconium tubes can also be used in desalination equipment, submarine oil and gas pipelines, etc.
Zirconium Tube/Pipe Packaging
The Zirconium Tube/Pipe is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
Eigenschaften von Zirkonium
Herunterladen
Angebot einholen
Wir werden das prüfen und uns innerhalb von 24 Stunden bei Ihnen melden.
Andere Rohre/Produkte
Heeger Metal provides high-quality custom tube and pipe products in a variety of materials including stainless steel, titanium, nickel alloys, and more. Our precision tubes and pipes are available in various sizes and forms, ideal for applications in industries such as aerospace, automotive, energy, and chemical processing.

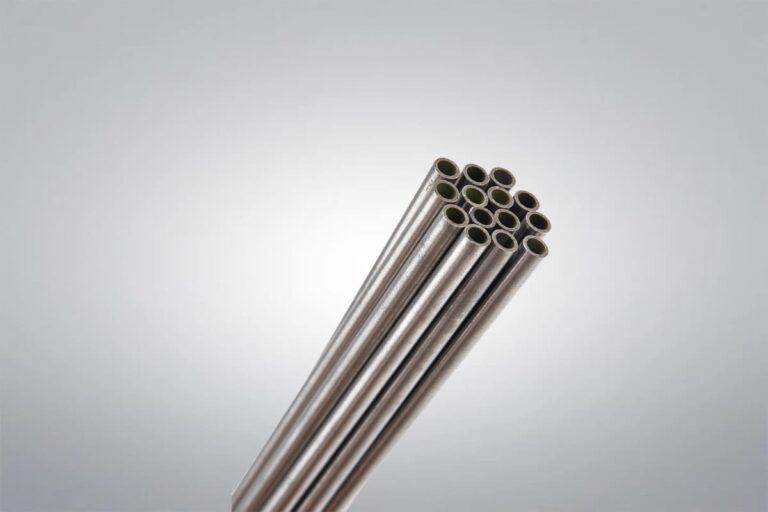

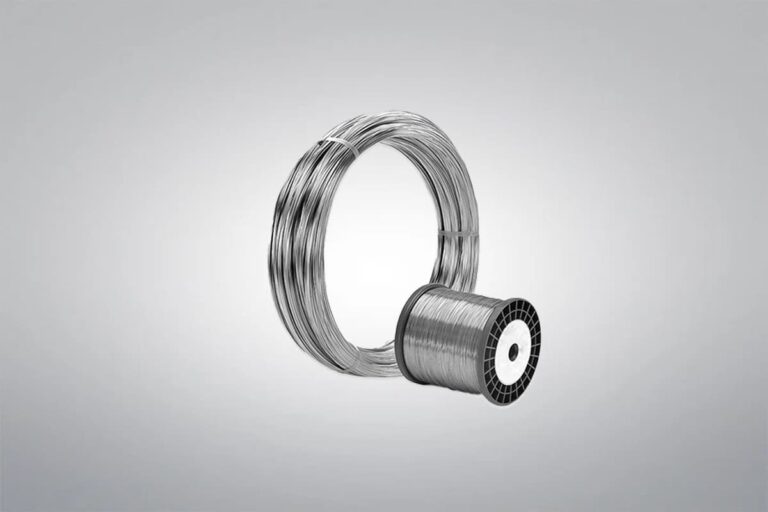

Andere Zirkonium/Hafnium-Produkte
