Tungsten Plate/Sheet/Disc

Material: Pure Tungsten, Tungsten Heavy Alloy (WNiFe, WNiCu)

Purity: 99%-99.999%

Custom sizes and standard sizes in stock
Quick Lead Time
Competitive Price

Tungsten Plate/Sheet/Disc is made from high-purity tungsten material with a high density and high melting point. They are widely used as structural materials in high-temperature environments, electronic components, and radiation shielding materials. As a leading supplier and manufacturer of premium tungsten products, Heeger Materials leverages advanced machining centers to deliver high-precision tungsten and tungsten alloy plates, sheets, and discs for wide ranges of applications.

Get a Quote

Or email us at sales@heegermaterials.com.

Tungsten Plate/Sheet/Disc Data Sheet

Reference:	HMWW1115
Dimensions:	Plate: 0.24″-10″ Thickness × ≤22″ Width × ≤80″ Length Sheet: 0.04″-0.24″ Thickness × ≤26″ Width × ≤80″ Length Disc: (0.04″–6.0″) Diameter x (0.004″–0.5″+) Thickness
Material:	Tungsten and Tungsten Heavy Alloy
Standard:	ASTM B777, ASTM B760
Purity:	99%, 99.9%, 99.95%, 99.99%, 99.999%
Temper:	Annealed or Unannealed

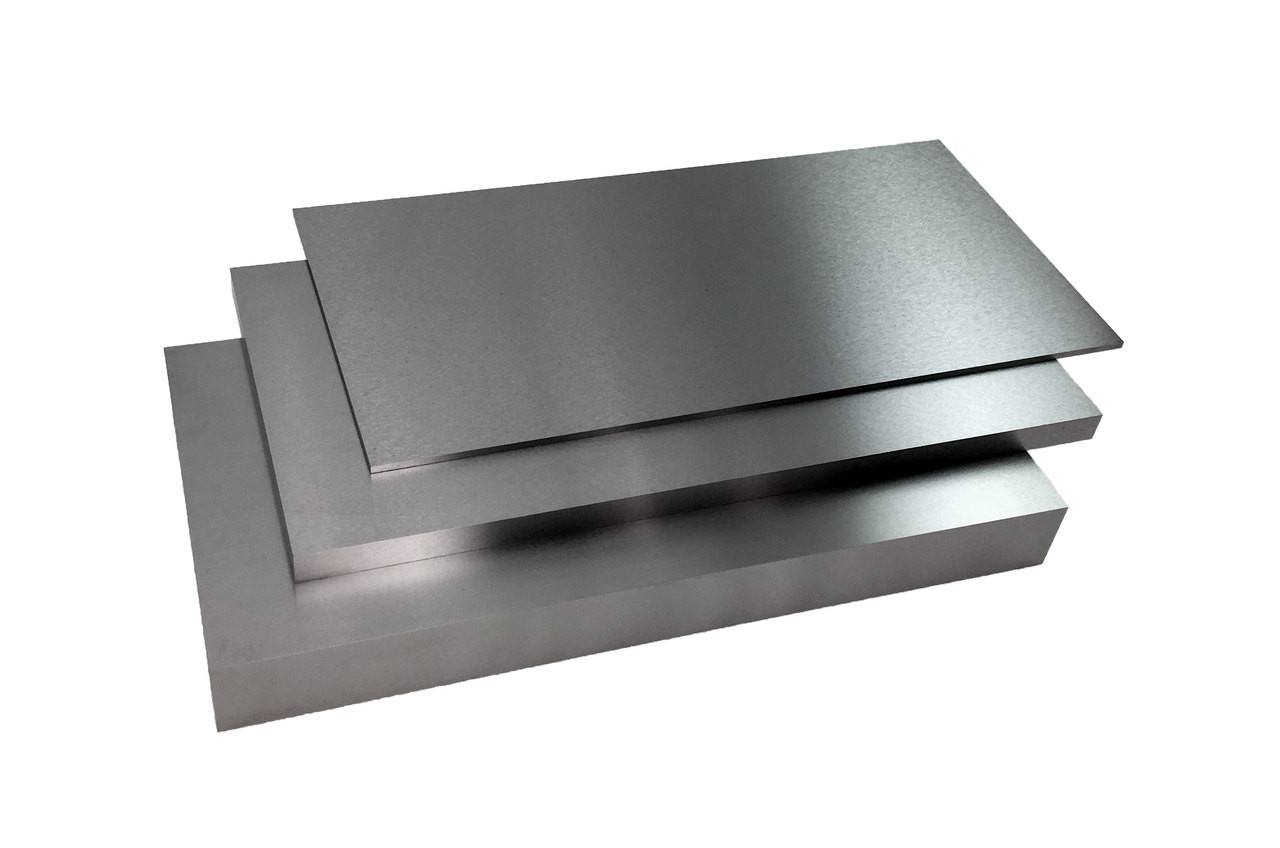

Tungsten Plate

Tungsten Plate is a dense, high-strength material with the highest melting point (3422°C), ideal for high-temperature and high-stress applications. Used in aerospace, military, electronics, and manufacturing, it offers excellent wear and corrosion resistance and high thermal stability. Tungsten plates can be customized in size, thickness, and coating (e.g., gold, nickel, rhodium) to meet specific needs.

Tungsten Plate Specifications

Thickness	0.240″ (6 mm) to 10″ (25.4 cm)
Width	Maximum 22″ (558 mm)
Length	Maximum 80″ (2000 mm)
Surface	Ground, Chemical Cleaned, As Rolled
Composition	W ≥ 99.95%
Standard	ASTM B-760

Tungsten Sheet

Tungsten Sheet is a thinner form of tungsten, typically ranging from 0.004″~0.24″ in thickness, ideal for applications requiring high precision, lighter weight, and flexibility.

Tungsten Sheet Specifications

Thickness	0.004″ (0.1 mm) to 0.240″ (6 mm)
Width	Maximum 26″ (660 mm)
Length	Maximum 80″ (2000 mm)
Surface	Ground, Chemical Cleaned, As Rolled
Composition	W ≥ 99.95%
Standard	ASTM B-760

Tungsten Disc

Tungsten Disc is a round, flat piece of tungsten, known for its high density, strength, and resistance to wear and corrosion. HM can offer customized solutions for diameter and thickness to meet specific requirements.

Tungsten Disc Specifications

Diameter	1.0 mm – 150.0 mm (0.04″ – 6.0″)
Thickness	0.1 mm – 12.0+ mm (0.004″ – 0.5″+)
Surface	Flatness: < 0.005 mm Parallelism: < 0.01 mm Ra: < 0.063 mm Tolerance: ± 0.025 mm
Material	Tungsten or Tungsten heavy alloy
Purity	99.9% ~ 99.99%
Standard	ASTM B760
Coating	Ru, Rh, Ni, Ag, Au, etc.

Tungsten Plate/Sheet/Disc Material Chemical Composition

W (>%)	Chemical Content (<%)
99.999 W1	Fe	Ca	Be	Sn	Al	Ni	Zn	Sb	Pt	K	Ta	Na
	0.0001	0.00005	0.000005	0.000005	0.00005	0.00001	0.00005	0.00005	0.00003	0.000005	0.0001	0.00005
	Cr	Pb	As	Mg	Ti	Bi	Mo	Cd	Cu	Ba	Co	Mn
	0.000005	0.00001	0.00005	0.00005	0.000005	0.00001	0.00001	0.000005	0.000007	0.00001	0.000005	0.000005
99.99 W2	Fe	Ca	Be	Sn	Al	Ni	Zn	Sb	Pt	K	O	Na
	0.0001	0.00045	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0005	0.0040	0.0009
	Cr	Pb	As	Mg	Ti	Bi	Mo	Cd	Cu	Ba	Co	Mn
	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0002	0.0001	0.0001	0.0001	0.0001	0.0001
99.95 W3	Fe	Ca	P	Sn	Al	Ni	N	Sb	Si	O	Pb	As
	0.005	0.003	0.001	0.0001	0.002	0.003	0.003	0.001	0.003	0.003	0.0001	0.002
	Mg	C	Bi	Mo
	0.002	0.005	0.0001	0.001

Tungsten Plate and Tungsten Sheet Stock Dimensions

0.002″ Thk × 3.937″ W × 12″ Lg	0.030″ Thk × 12″ W × 12″ Lg	0.375″ Thk × 12″ W × 12″ Lg
0.003″ Thk × 4″ W × 12″ Lg	0.040″ Thk × 12″ W × 12″ Lg	0.500″ Thk × 12″ W × 12″ Lg
0.004″ Thk × 6″ W × 12″ Lg	0.050″ Thk × 12″ W × 12″ Lg	0.625″ Thk × 6″ W × 6″ Lg
0.005″ Thk × 12″ W × 12″ Lg	0.060″ Thk × 12″ W × 12″ Lg	0.625″ Thk × 12″ W × 12″ Lg
0.010″ Thk × 12″ W × 12″ Lg	0.080″ Thk × 12″ W × 12″ Lg	0.750″ Thk × 6″ W × 6″ Lg
0.012″ Thk × 6″ W × 20″ Lg	0.100″ Thk × 12″ W × 12″ Lg	0.750″ Thk × 12″ W × 12″ Lg
0.012″ Thk × 6″ W × 12″ Lg	0.125″ Thk × 12″ W × 12″ Lg	1.000″ Thk × 6″ W × 12″ Lg
0.012″ Thk × 8″ W × 20″ Lg	0.250″ Thk × 6″ W × 6″ Lg	1.250″ Thk × 6″ W × 12″ Lg
0.015″ Thk × 12″ W × 12″ Lg	0.250″ Thk × 6″ W × 12″ Lg	1.500″ Thk × 6″ W × 12″ Lg
0.020″ Thk × 12″ W × 12″ Lg	0.250” Thk × 12″ W × 12″ Lg	2″ Thk × 6″ W × 12″ Lg
0.025″ Thk × 12″ W × 12″ Lg	0.375″ Thk × 6″ W × 6″ Lg

Tungsten Plate/Sheet/Disc Production Process

Raw Material: Select high-purity tungsten powder.
Powder Metallurgy: Mix with binder and compact into a green billet.
Sintering: High-temperature sintering to remove the binder and increase density.
Heat Treatment: Anneal to relieve stress and enhance properties.
Surface Treatment: Clean and polish the surface.
Cutting & Customization: Cut or customize according to requirements.

Tungsten Plate/Sheet/Disc Surface Treatment

Tungsten plates, sheets, and discs can undergo various surface treatments to enhance their properties for specific requirements. The most common surface treatments are as follows:

Polishing
Grinding
Coating
Oxidation
Electrolytic polish
Alkaline cleaning

Tungsten Heavy Alloy Plate/Sheet/Disc

Tungsten alloy plates and sheets, including WNiFe and WNiCu variants, are advanced materials known for their exceptional industrial properties. These tungsten-heavy alloys typically contain 80%-98% tungsten, along with small amounts of molybdenum, nickel, iron, and copper, providing a balance of strength and durability. Like pure tungsten, these alloy plates start as powders that undergo a series of processes including heating, mixing, pressing, and sintering to achieve their high-performance characteristics.

Tungsten Plate/Sheet/Disc Applications

High-temperature Furnaces: Tungsten plates, sheets, and discs are commonly used to manufacture heating elements in high-temperature furnaces such as tungsten boats, insulation screens, and heat generators.
Semiconductor Components: Tungsten plates, sheets, and discs are often processed into semiconductors and other implantation parts.
Sputtering Targets: Tungsten plates, sheets, and discs are also used to make tungsten sputtering targets for semiconductors.

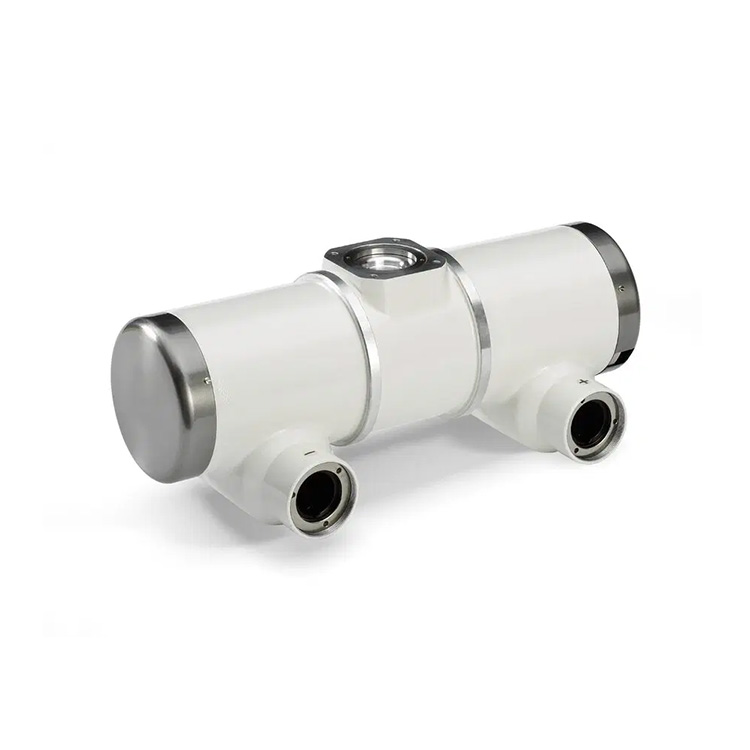

Medical: Tungsten plates, sheets, and discs can also serve as substrate material for medical ray tube targets.

Tungsten Plate/Sheet/Disc Packaging

The Tungsten Plate/Sheet/Disc is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.

Tungsten Properties

Item	Value
Atomic number	74
Crystal structure	Body centred cubic
Electronic structure	Xe 4f¹⁴ 5d⁴ 6s²
Valences shown	2,3,4,5,6
Atomic weight( amu )	183.85
Thermal neutron absorption cross-section( Barns )	18.5
Photo-electric work function( eV )	4.55
Natural isotope distribution( Mass No./% )	183/ 14.3
Natural isotope distribution( Mass No./% )	182/ 26.3
Natural isotope distribution( Mass No./% )	186/ 28.6
Natural isotope distribution( Mass No./% )	180/ 0.1
Natural isotope distribution( Mass No./% )	184/ 30.7
Atomic radius – Goldschmidt( nm )	0.141
Ionisation potential( No./eV )	1/ 7.98
Ionisation potential( No./eV )	2/ 17.7

Item	Value
Material condition	Annealed (Soft)
Material condition	Un-annealed (Hard)
Poisson’s ratio	0.28
Poisson’s ratio	0.28
Bulk modulus( GPa )	311
Bulk modulus( GPa )	311
Tensile modulus( GPa )	411
Tensile modulus( GPa )	411
Hardness – Vickers( kgf mm⁻² )	360
Hardness – Vickers( kgf mm⁻² )	500
Tensile strength( MPa )	550-620
Tensile strength( MPa )	1920
Yield strength( MPa )	550

Item	Value
Electrical resistivity( µOhmcm )	5.4@20@20°C
Superconductivity critical temperature( K )	0.0154
Temperature coefficient( K⁻¹ )	0.0048@0-100°C
Thermal emf against Pt (cold 0C – hot 100C)( mV )	1.12

Item	Value
Boiling point( °C )	5660
Density( gcm⁻³ )	19.3@20°C

Item	Value
Melting point( °C )	3410
Latent heat of evaporation( J g⁻¹ )	4009
Latent heat of fusion( J g⁻¹ )	192
Specific heat( J K⁻¹ kg⁻¹ )	133@25°C
Thermal conductivity( W m⁻¹ K⁻¹ )	173@0-100°C
Coefficient of thermal expansion( x10⁻⁶ K⁻¹ )	4.5@0-100°C

Download

SAFETY DATA SHEET (SDS) – Tungsten Metal

Get A Quote

We will check and get back to you in 24 hours.

To customize your tungsten plate, tungsten sheet, or tungsten disc please provide the following details:

Diameter (for discs)
Thickness (for plates, sheets, and discs)
Width and Length (for plates and sheets)
Tolerances (for thickness, diameter, width, or length)
Purity (Specify the purity of material required.)
Surface Finish (polished, rough, oxide-coated, etc.)
Quantity of the products you need
Alternatively, you can provide a drawing with your specifications.

Once we have these details, we can provide you with a quote within 24 hours.

We carry a wide variety of tungsten and tungsten alloy products in stock, and for these, there is generally no minimum order requirement. However, for custom orders, we typically set a minimum order value of $200. The lead time for stock items is usually 1-2 weeks, while custom orders usually take 3-4 weeks, depending on the specifics of the order.

DFARS (Defense Federal Acquisition Regulation Supplement) compliance is primarily concerned with the sourcing of materials for defense-related applications in the United States. According to DFARS, certain materials used in defense must be sourced from the United States or qualifying countries.

If you have specific tungsten materials that are subject to DFARS, please let us know in advance and we will confirm.

At Heeger Materials Inc., we take this responsibility seriously. We adhere to all applicable laws and regulations, including Section 1502 of the Dodd-Frank Act. Our company operates with a strict code of ethics and is committed to only partnering with suppliers who share our dedication to responsible sourcing. We support the initiatives and programs aimed at promoting “conflict-free” supply chains and work diligently to ensure that our products meet these standards.

Heeger Materials Inc., established in 2016 in Colorado, USA, is a specialized supplier and manufacturer of tungsten and tungsten alloys. With extensive expertise in supply and export, we offer competitive pricing and customized solutions tailored to specific requirements, ensuring outstanding quality and customer satisfaction. As a professional provider of refractory metals, specialty alloys, spherical powders, and various advanced materials, we serve the research, development, and large-scale industrial production needs of the scientific and industrial sectors.
