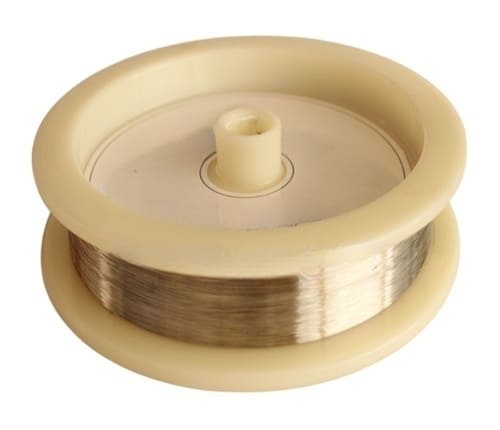

Type B Platinum Rhodium Thermocouple Wire

Type B platinum rhodium thermocouple wire

Type B Platinum Rhodium Thermocouple Wire

Diameter: 0.03-0.81 mm, or Customized

  • Custom sizes and standard sizes in stock
  • Quick Lead Time
  • Competitive Price
5 星级
5 星级
5 星级
5 星级
5 星级

Type B Platinum Rhodium Thermocouple Wire is a high-performance temperature sensing solution designed for extreme temperature measurements. It is composed of o Pt-Rh alloy with 30% Rh for the positive electrode (BP) and 6% Rh for the negative electrode (BN), offering exceptional accuracy, stability, and resistance to oxidation. As a leading supplier and manufacturer of premium platinum products, Heeger Metal leverages advanced technology to deliver high-quality platinum rhodium thermocouple wires for various applications.

Get a Quote
Or email us at max@heegermaterials.com.

Type B Platinum Rhodium Thermocouple Wire Data Sheet

Reference Code:HMPL2699
Density:19.97 g/cm3
Specification:(+)70% Pt, 30% Rh
(-)94% Pt, 6% Rh
Dimension:Diameter: 0.03-0.81 mm, or Customized
Length: TBD (To Be Determined)
Product Form:Straight, Coil, or Spooled
Temper:Annealed or Unannealed

Type B Platinum Rhodium Thermocouple Wire Description

Type B Platinum Rhodium Thermocouple Wire consists of a platinum-rhodium alloy with 30% Rh for the positive electrode (BP) and 6% Rh for the negative electrode (BN). It is ideal for high-temperature applications, providing reliable measurements in environments ranging from 0℃ to 1800℃. It has a long service life and excellent resistance to corrosion, and is widely applied in glass and ceramics, steel and non-ferrous metal smelting, burners and boilers, automotive exhaust measurement, and scientific research. Heeger Metal can supply high-quality platinum rhodium thermocouple wires in various diameters and customized designs for multiple industrial and research applications.

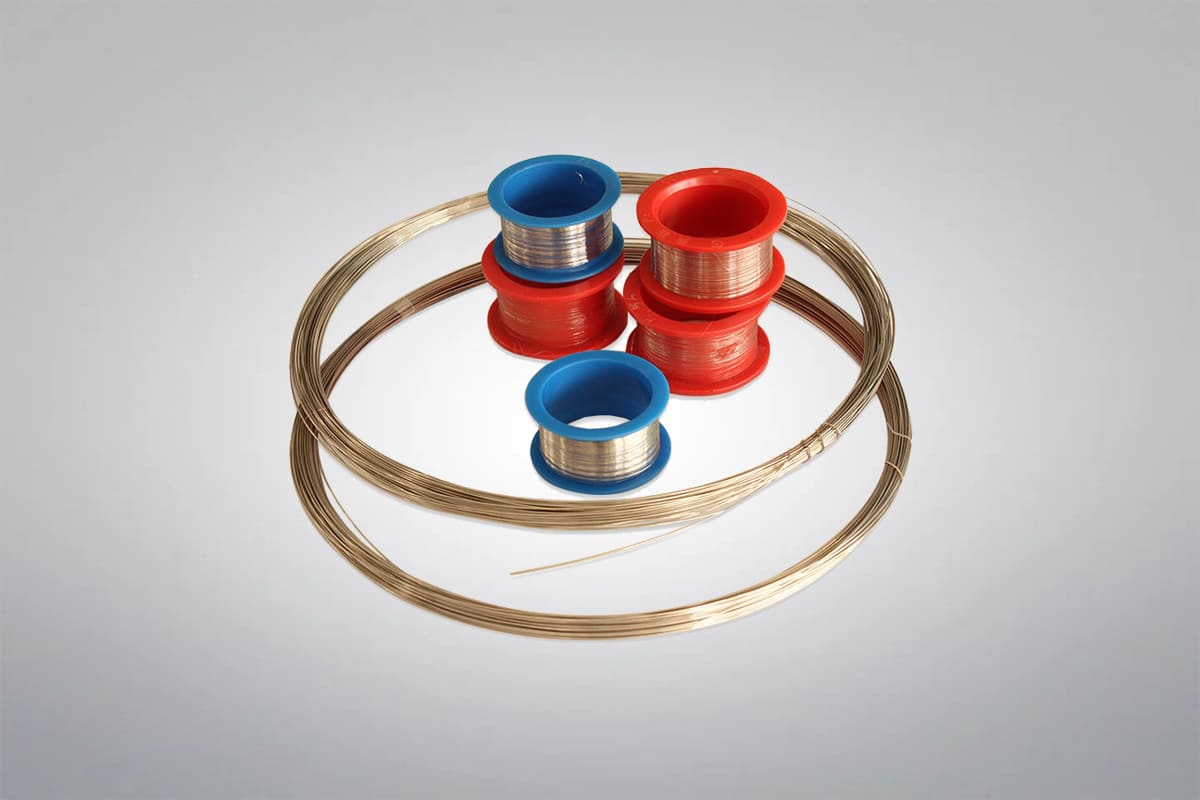

  • Type B platinum rhodium thermocouple wire

Platinum Rhodium Thermocouple Wire Types

Type B Pt-Rh Thermocouple Wire

Type B Pt-Rh Thermocouple Wire

(+)70% Pt, 30% Rh
(-)94% Pt, 6% Rh
Operating Temperature: 1500-1700℃

Type R Pt-Rh Thermocouple Wire

Type R Pt-Rh Thermocouple Wire

 (+) 87% Pt, 13% Rh
 (-) 100% Pt
Operating Temperature: 1400-1600℃

Type S Pt-Rh Thermocouple Wire

Type S Pt-Rh Thermocouple Wire

 (+) 90% Pt, 10% Rh
 (-) 100% Pt
Operating Temperature: 1400-1600℃

Type B Platinum Rhodium Thermocouple Wire Services

  • Remelting & Refurbishment: We offer remelting and refurbishment services for damaged platinum-rhodium wire.
  • Diameter Adjustment: Wire diameter can be increased or reduced to meet specific needs. We provide wires under 0.1mm for fast temperature measurement.
  • Hardness Adjustment: We supply platinum-rhodium wire in soft (electrically annealed) or semi-hardened forms based on customer requirements.

Type B Platinum Rhodium Thermocouple Wire Features

  • High Accuracy: Known for its exceptional accuracy and stability among thermocouples.
  • Wide Temperature Range: Measures temperatures from 0°C to 1800°C.
  • Long Service Life: Offers a longer lifespan compared to other thermocouples.
  • High Temperature Limit: Suitable for high-temperature applications up to 1800°C.
  • Low Thermoelectric Potential: Minimal effect from reference junction temperature changes, no need for compensating wires.
  • Durability: Ideal for use in oxidizing and neutral atmospheres, short-term use in vacuum, but not in reducing or metal/non-metal vapor environments.
  • Resistance to Degradation: Rhodium improves heat resistance and reduces degradation from high-temperature diffusion.
  • Stability: Small grain size and increased rhodium content enhance thermoelectric stability and mechanical strength.

Type B Platinum Rhodium Thermocouple Wire Applications

  • Glass and Ceramics Industry: Used for furnace temperature measurements to ensure product quality and production efficiency.
  • Steel and Non-Ferrous Metal Smelting: Used for temperature control during the smelting process to optimize smelting techniques.
  • Burners and Boilers: Monitors the temperature of burners and boilers to ensure safe operation.
  • Automotive Exhaust Measurement: Used to measure the temperature of automotive exhaust gases to assess emission performance.
  • Scientific Research: Monitors high-temperature reactions in research, providing accurate temperature data support.

Type B Platinum Rhodium Thermocouple Wire Packaging

Type B Platinum Rhodium Thermocouple Wire is carefully placed in wooden cases or cartons with additional soft materials to support and prevent shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.

Metal Packing

Platinum Rhodium Alloy Properties

ElementValue
Hardness – Brinell90-165
Elongation at break( % )35
Tensile strength( MPa )320-620
ElementValue
Electrical resistivity( µOhmcm )18.4-19.2
Temperature coefficient( K⁻¹ )0.0017
ElementValue
Density( gcm⁻³ )19.97
ElementValue
Melting point( ℃ )1830-1855
Thermal conductivity( W m⁻¹ K⁻¹ )38@23°C

Download

Get A Quote

We will check and get back to you in 24 hours.

To customize your type B platinum rhodium thermocouple wire, please provide the following details:

  1. Diameter (for the wire)
  2. Length (Indicate the length you need)
  3. Purity (Specify the purity of material required.)
  4. Form (Straight, coiled, or spooled)
  5. Surface Finish (polished, rough, oxide-coated, etc.)
  6. Quantity of the products you need
  7. Alternatively, you can provide a drawing with your specifications.

Once we have these details, we can provide you with a quote within 24 hours.

We carry a wide variety of platinum products in stock, and for these, there is generally no minimum order requirement. However, for custom orders, we typically set a minimum order value of $200. The lead time for stock items is usually 1-2 weeks, while custom orders usually take 3-4 weeks, depending on the specifics of the order.

DFARS (Defense Federal Acquisition Regulation Supplement) compliance is primarily concerned with the sourcing of materials for defense-related applications in the United States. According to DFARS, certain materials used in defense must be sourced from the United States or qualifying countries.

If you have specific platinum materials that are subject to DFARS, please let us know in advance and we will confirm.

At Heeger Metal, we take this responsibility seriously. We adhere to all applicable laws and regulations, including Section 1502 of the Dodd-Frank Act. Our company operates with a strict code of ethics and is committed to only partnering with suppliers who share our dedication to responsible sourcing. We support the initiatives and programs aimed at promoting “conflict-free” supply chains and work diligently to ensure that our products meet these standards.

Type B platinum rhodium thermocouple wire consists of Pt30%Rh-Pt6%Rh alloys, designed for ultra-high temperature measurements up to 1800℃ with superior stability.

Type B offers higher temperature limits (1800℃ vs. 1600℃ for S/R) and lower sensitivity to low-temperature erros.
